▣ CRS 200 FEATURES
- Electroless nickel-plated brass body
- 3" Teflon?-lined 302 stailess steel diaphragm
- Monel™ nozzle, CGA Inlet, and gauges
- Precision yoke interconnects the diaphragm and seat block for instant response to flow demands
- Unique multi-seat design

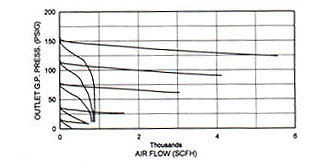

▣ CRS 100 performance data


▣ 재료구조
BODY ------------------------------------- Electroless nickel-plated brass
Spring housing cap ----------------------- Electroless nickel-plated brass
Diaphragm -------------------------------- 302 Stainless Steel
Nozzle ----------------------------------- Monel™
Seat ------------------------------------- KEL-F™
Filter ----------------------------------- Electroless nickel-plated sintered bronze
Seals ------------------------------------ Teflon?I
Adjusting Screw -------------------------- Electroless nickel-plated brass
